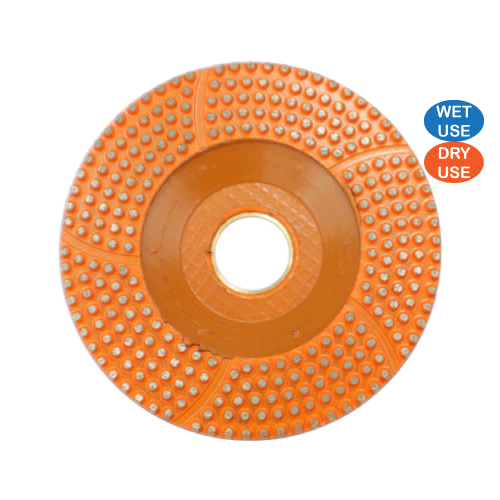

BAT Pro Diamond

Super Cluster Grinding Wheel

BD-GWSC-100 (100mm x 22.2/20)
BD-GWSC-180 (180mm x 25.4/22.2)

BAT Pro Diamond

Mesh Rim

BD-MTR-105 (105mm x 22.2/20/16)
BD-MTR-115 (115mm x 22.2/20/16)
BD-MTR-125 (125mm x 22.2/20/16)
BD-MTR-180 (180mm x 25.4/22.2)
BD-MTR-250 (250mm x 25.4/22.2)
BD-MTR-350 (350mm x 25.4/22.2)

BAT Pro Diamond

Turbo Rim

BD-TTR-105 (105mm x 22.2/20/16)
BD-TTR-115 (115mm x 22.2/20/16)
BD-TTR-125 (125mm x 22.2/20/16)

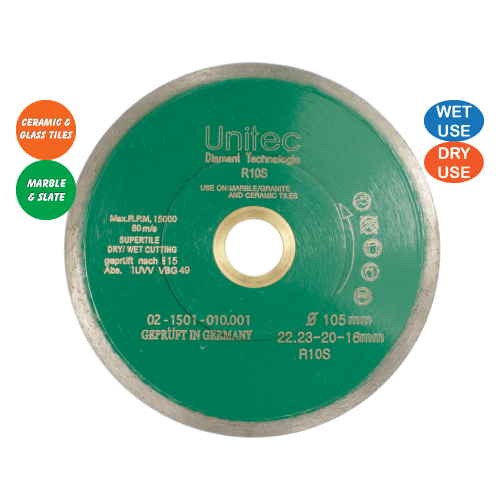

Unitec R10S

Continuous Rim

DB-4-R10S (105mm x 22.2/20/16)
DB-45-R10S (115mm x 22.2/20/16)
DB-5-R10S (125mm x 22.2/20/16)
DB-8-R10S (200mm x 25.4/22.2)
DB-10-R10S (250mm x 30/25.4)
DB-12-R10S (300mm x 30/25.4)
DB-14-R10S (350mm x 30/25.4)

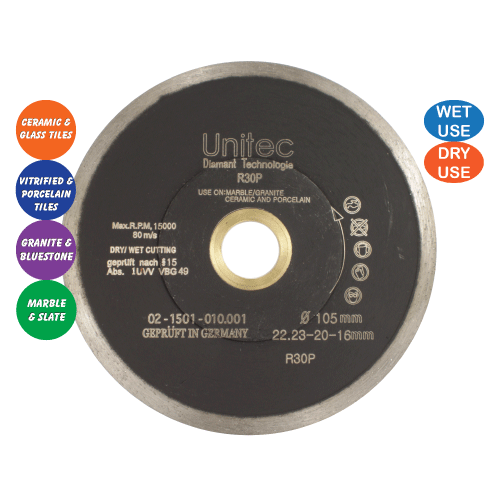

Unitec R30P

Continuous Rim

DB-4-R30P (105mm x 22.2/20/16)
DB-45-R30P (115mm x 22.2/20/16)
DB-5-R30P (125mm x 22.2/20/16)
DB-8-R30P (200mm x 25.4/22.2)
DB-10-R30P (250mm x 30/25.4)
DB-12-R30P (300mm x 30/25.4)
DB-14-R30P (350mm x 30/25.4)

Unitec T20S

Turbo Rim

DB-4-T20S (105mm x 22.2/20/16)
DB-45-T20S (115mm x 22.2/20/16)
DB-5-T20S (125mm x 22.2/20/16)

Unitec KT1

Turbo Rim

DB-4-KT1 (105mm x 22.2/20/16)
DB-45-KT1 (115mm x 22.2/20/16)
DB-5-KT1 (125mm x 22.2/20/16)
DB-8-KT1 (200mm x 25.4/22.2)
DB-10-KT1 (250mm x 30/25.4)
DB-12-KT1 (300mm x 30/25.4)
DB-14-KT1 (350mm x 30/25.4)

BAT Pro Diamond

Thin Rim - Reinforced Centre

BD-TRRC-250 (250mm x 25.4/22.2)
BD-TRRC-300 (300mm x 30/25.4)
BD-TRRC-350 (350mm x 30/25.4)

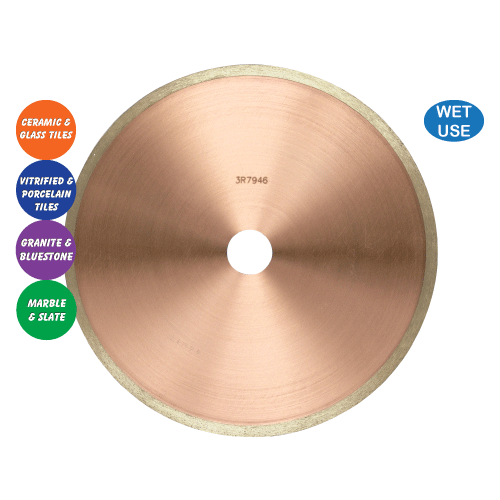

Raimondi Diamond

Continuous Rim - Economy

RAI-DBCC180 (180mm x 25.4)
RAI-DBCC200E (200mm x 25.4)

Raimondi Diamond

Continuous Rim - Premium

RAI-DBCC200 (200mm x 25.4)
RAI-DBCC250 (250mm x 25.4)
RAI-DBCC300 (300mm x 30/25.4)
RAI-DBCC350 (350mm x 30/25.4)

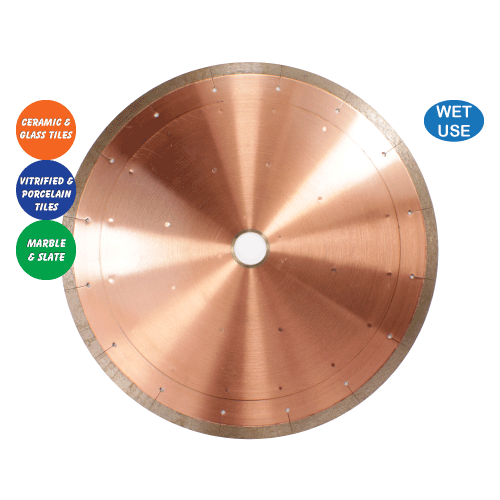

Raimondi Diamond Blade

Slotted Rim - Porcelain

RAI-DBSET200SP (200mm x 25.4)
RAI-DBSET250BE (Econ 250mm x 25.4)
RAI-DBSET250B (250mm x 25.4)
RAI-DB12SET300B (300mm x 30/25.4)
RAI-DBSET350B (350mm x 30/25.4)

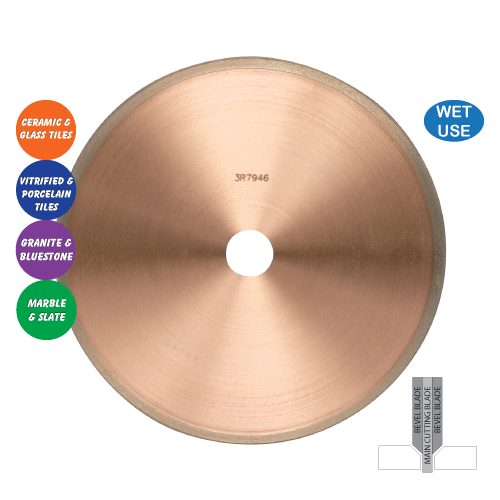

Raimondi Diamond Blade

Specialist Rim - 45° Bevel
(See Diagram)

RAI-DBCC2250B (250mm x 25.4)

Raimondi Diamond Blade

Segmented Rim - Economy

RAI-DBSET250E (250mm x 25.4)
RAI-DBSET300E (300mm x 30/25.4)
RAI-DBSET360E (360mm x 30/25.4)

Raimondi Diamond Blade

Segmented Rim - Premium

RAI-DBSET300 (300mm x 30/25.4)
RAI-DBSET360 (360mm x 30/25.4)

Raimondi Diamond Blade

Segmented Rim - Granite

RAI-DBSET300G (300mm x 30/25.4)
RAI-DBSET350G (350mm x 30/25.4)

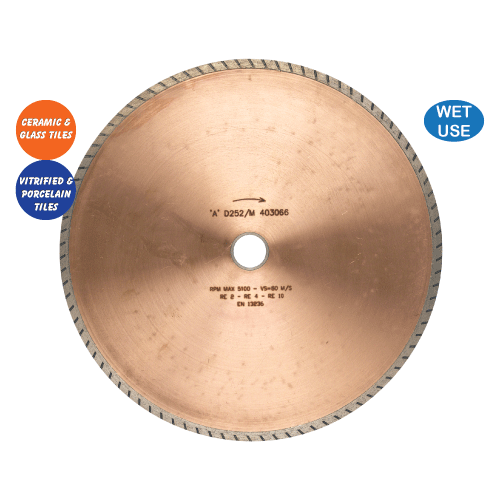

Raimondi Diamond Blade

Turbo Rim - Premium

RAI-DBCCT250 (250mm x 25.4)
RAI-DBCCT300 (300mm x 30/25.4)
RAI-DBCCT350 (350mm x 30/25.4)

Sigma Diamond

Continuous Rim - Premium

SIG-60E (200mm x 30)

Sigma Diamond

Slotted Rim - Premium

SIG-74C (300mm x 30)

Diamond Blade

Centre Bushes

BD-BUSH-2016 (20/16)
BD-BUSH-2216 (22.2/16)
BD-BUSH-2220 (22.2/20)
BD-BUSH-2516 (25.4/16)
BD-BUSH-2520 (25.4/20)
BD-BUSH-2522 25/4/22.2)
BD-BUSH-2522R (25.4/22.2)
BD-BUSH-3022 (30/22.2)
BD-BUSH-3025 (30/25.4)
BD-BUSH-3025R (30/25.4)

R = To Suit Blades With Thick/Reinforced Centre
